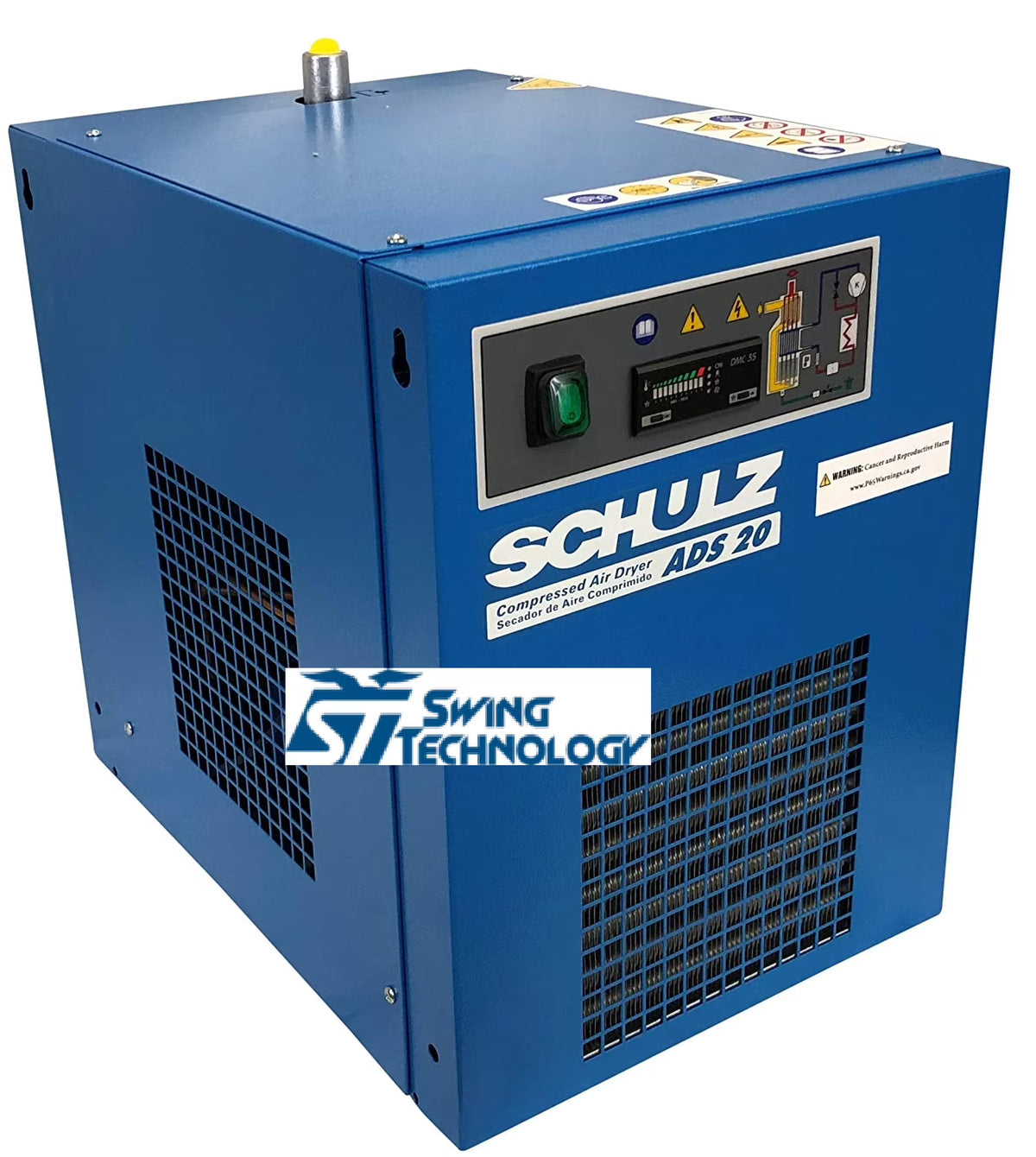

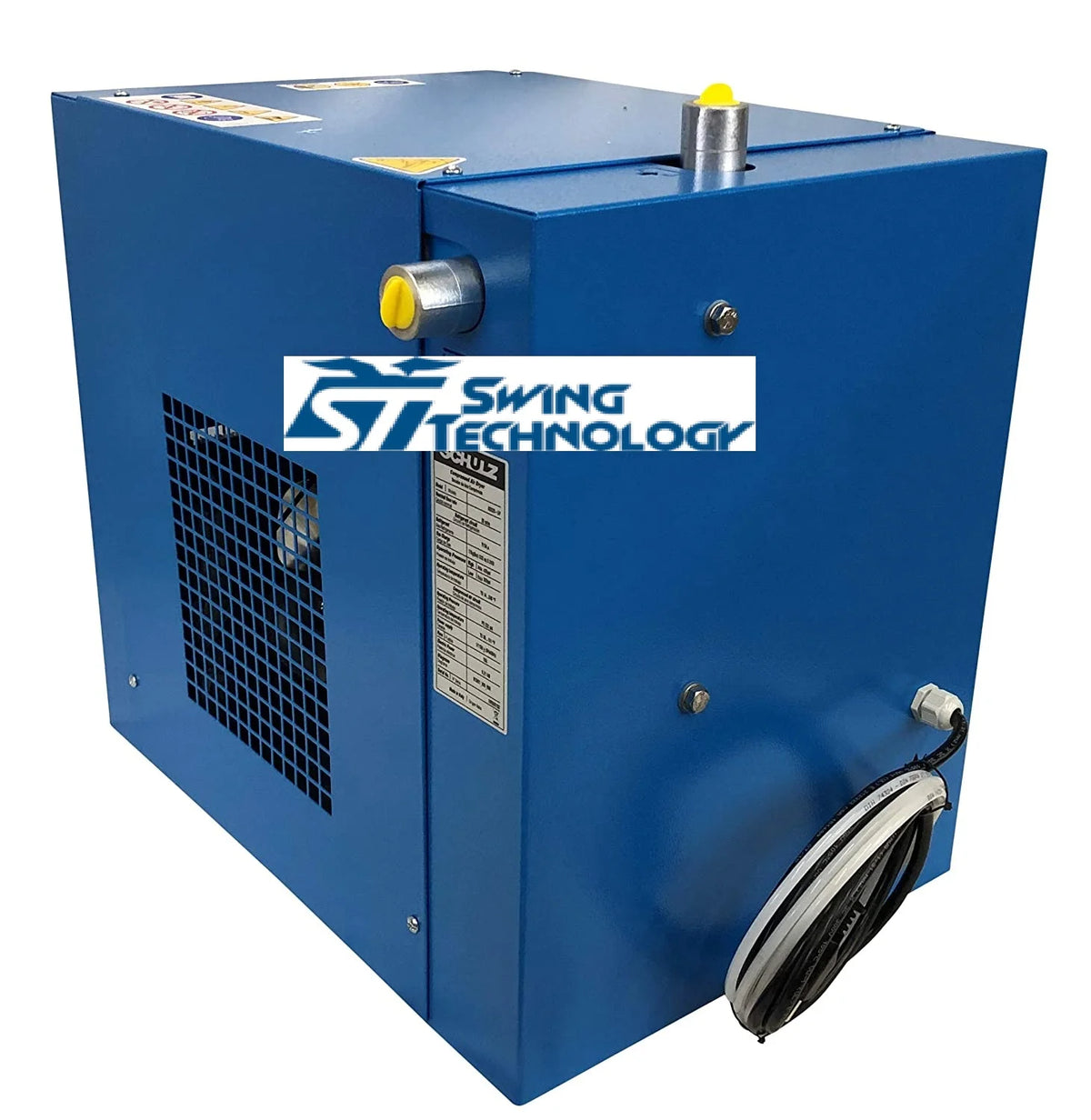

Schulz ADS 20 Non-Cycling Refrigerated Compressed Air Dryer (20-25 CFM 115V 1-Phase)

\n1 YEAR WARRANTY. \n \nExcellent Performance \n
  • \n
  • Even where ambient & inlet temperatures are elevated
  • \n
  • Nominal air pressure of 100 PSI; 232 PSI maximum
  • \n
\nEnergy Efficient Sizing \n
  • \n
  • Matches the compressor's displacement, saving energy
  • \n
\nElectronic Controller \n
  • \n
  • Digitally shows temperature & dew point
  • \n
  • Controls the drain valve through a timer
  • \n
  • Controls the condenser fan through a probe
  • \n
\nHigh-Efficiency Compressor \n
  • \n
  • Circulates the refrigerant through the system
  • \n
\nTotally New Design \n
  • \n
  • Delivers high dependability & low power consumption
  • \n
  • Quick disconnect automatic drain valve doesn't need special tools
  • \n
  • Requires a 115V, single phase circuit
  • \n
\nEnvironmentally Friendly Refrigerant \n
  • \n
  • R134a is effective & easier on the environment
  • \n

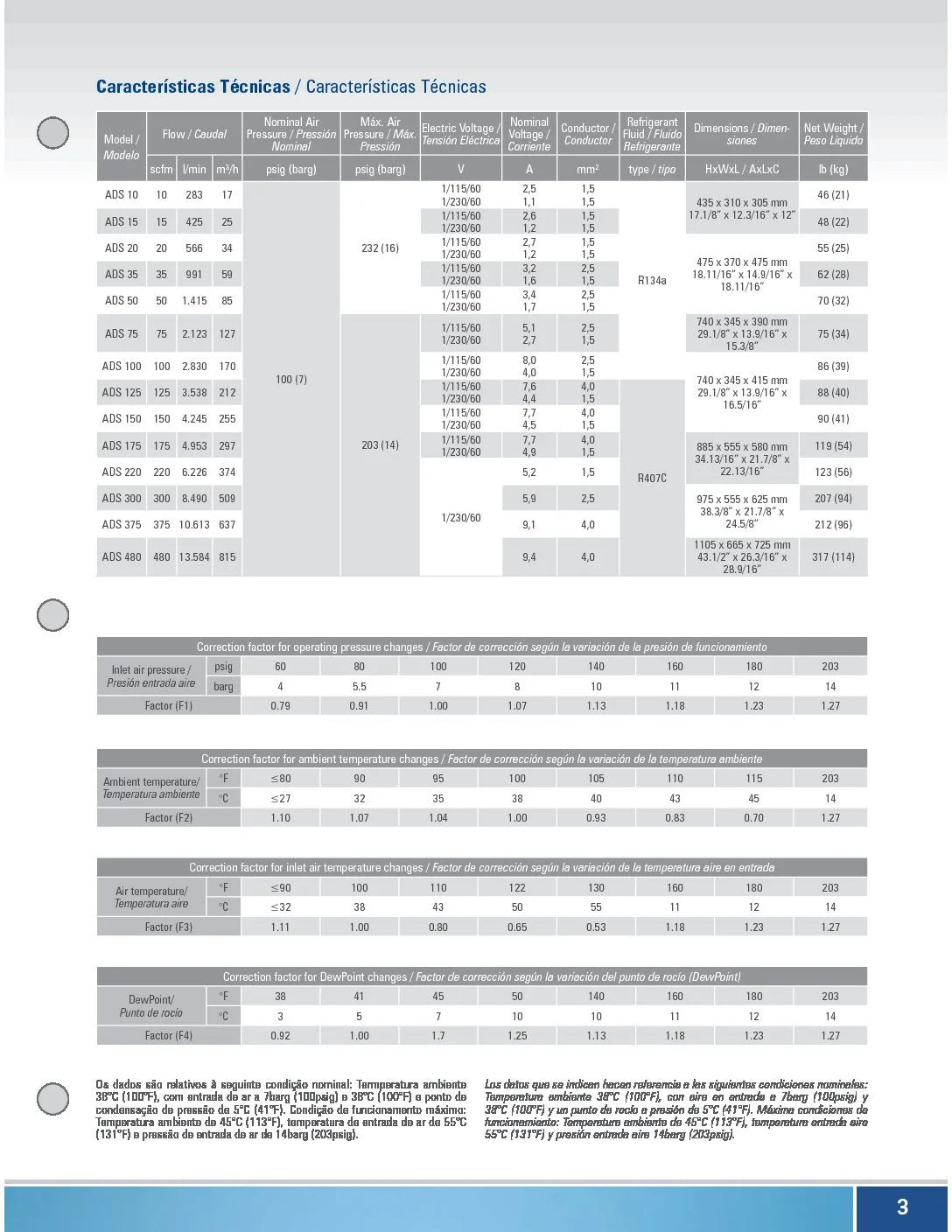

\n \n \n \nTechnical Features  \n \n
\n \nModel \nADS 20 \n \n \nFlow (CFM) \n20 \n \n \nRated Pressure (PSI) \n175 \n \n \nMaximum Pressure (PSI) \n232 \n \n \nConnection (in) \n1/2" NPT-F \n \n \nVoltage (V) \n115 \n \n \nRefrigerant Fluid \nR134a \n \n \nFrequency (Hz) \n60 \n \n \nPhase \nSingle \n \n \nNominal Voltage (A) \n2.7 \n \n \nDimensions (HxWxL in) \n19 x 15 x 19 \n \n \n \nhttps://schulzproducts.com/wp-content/uploads/2018/05/DRYER-SCHULZ.pdf \n \n \n \n \nschulz-refrigerated-air-compressor-dryer-20-25-cfm- ads-20-up
