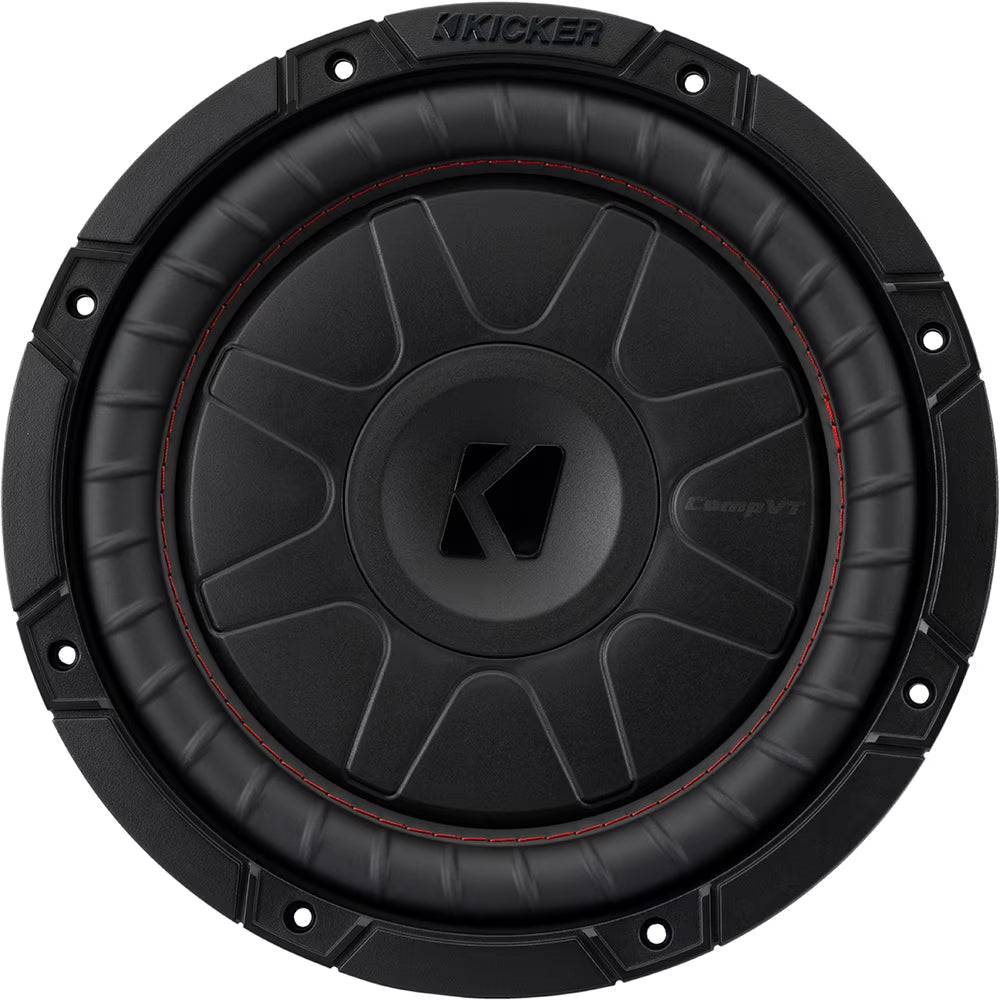

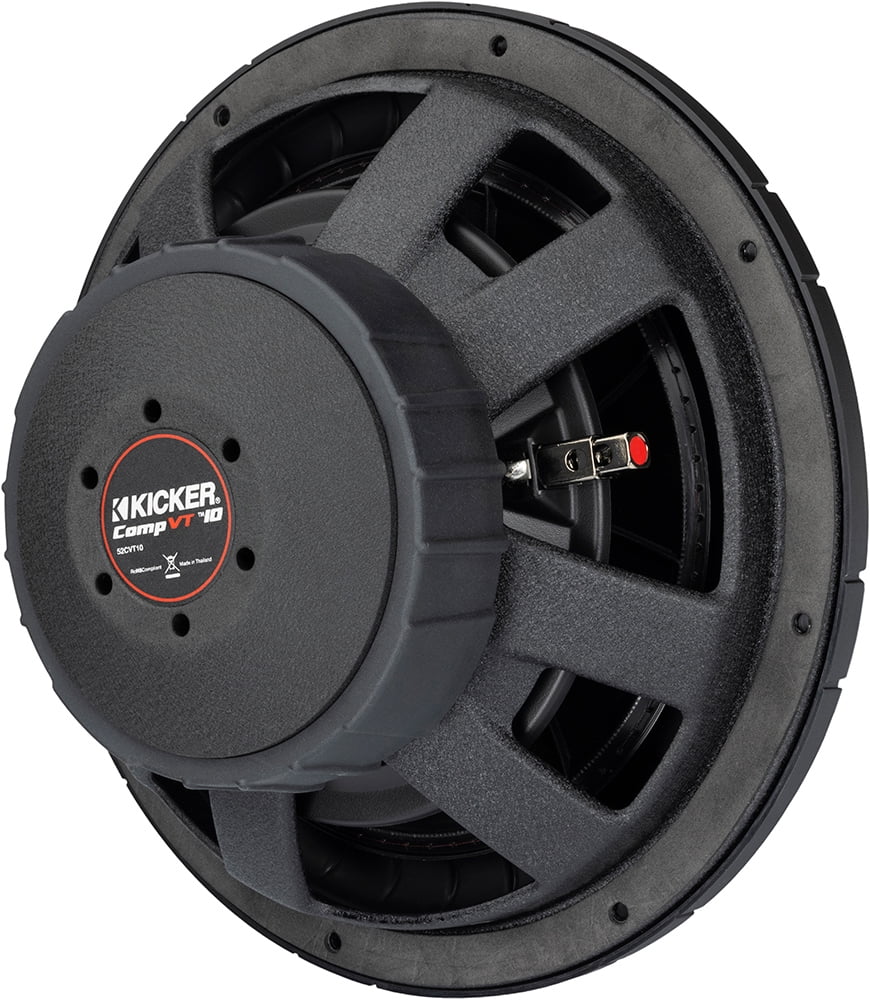

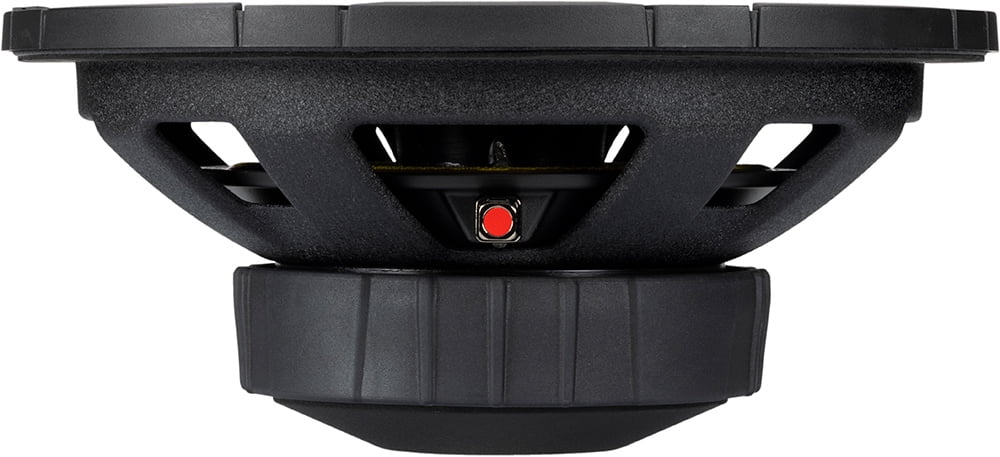

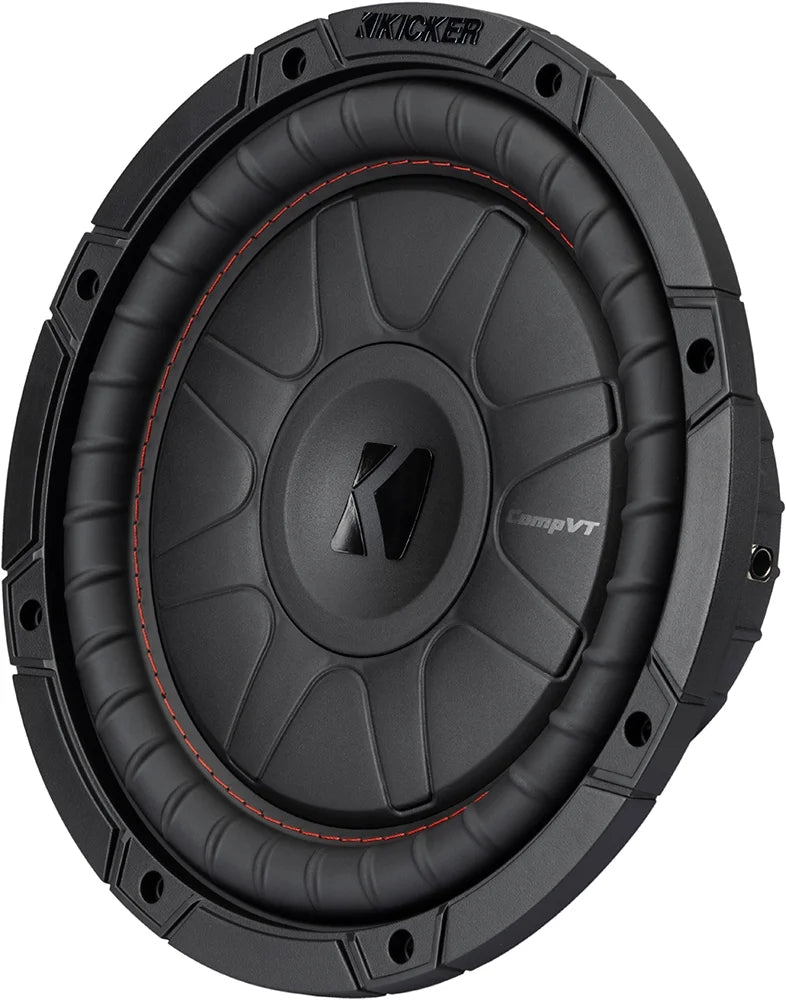

Kicker 52CVT102 CVT10 CompVT 10-Inch (24cm) Subwoofer, 2 Ohm SVC

The CompVT 10-Inch Subwoofer is available as a 2Ω slimline driver.

New and improved, precise KICKER engineering allows the CompVT to pound with limited space. A proprietary four-layer voice coil collaborating with SoloKon�?cone technology, provides the ability to work with serious amounts of power without the bulk of a standard subwoofer.

The CompVT Subwoofer works best with a sealed or ported enclosure for its substantial power handling.

Specifications
SIZE [in, cm]: 10, 25
IMPEDANCE [Ohms]: 2 SVC
Recommended Amplifier Power (watts RMS) 180-375
Peak Power (watts, per ANSI/CTA-2031-A) 750
SENSITIVITY [dB 1w/1m]: 87.2
MOUNTING DEPTH [in, cm]: 4-1/4, 10.8
MOUNTING DIAMETER [in, cm]: 9-3/16, 23.3
MIN SEALED BOX VOL [cu. ft, L]: 0.8, 22.5
MAX SEALED BOX VOL [cu. ft, L]: 3, 85
MIN VENTED BOX VOL [cu. ft, L]: 1.25, 35.4
MAX VENTED BOX VOL [cu. ft, L]: 1.75, 49.6

Thiele/Small Parameters
Re: 2.675 Ohm
Krm: 0.00185 Ohm
Erm: 0.995
Kxm: 0.02575 Ohm
Exm: 0.78
Cmes: 849.94
Lces: 20.055
Res: 37.375 Ohm
fs: 38.6 Hz
Mms: 144.4155 g
Mmd (Sd): 136.4885 g
Rms: 4.5485 kg/s
Cms: 0.118 mm/N
Kms: 8.485 N/mm
Bl: 13.0385 Tm
Qtp: 0.764 total Q-factor considering all losses
Qms: 7.6925 mechanical Q-factor of driver in free air considering Rms only
Qes: 0.7565 electrical Q-factor of driver in free air considering Re only
Qts: 0.689 total Q-factor considering Re and Rms only
Vas: 22.4299 I
n0: 0.1635 reference efficiency (2 pi-radiation using Re)
Lm: 84.33 dB characteristic sound pressure level (SPL at 1m for 1W @ Re)
Lnom: 84.7 dB nominal sensitivity (SPL at 1m for 1W @ Zn)
Sd: 366.44 cm² diaphragm area
Xmax: 13 mm

• 10" CompVT Subwoofer
• Peak Power 750 watts
• RMS 375 watts
• 2 Ohm Impedance
• Single Voice Coil
