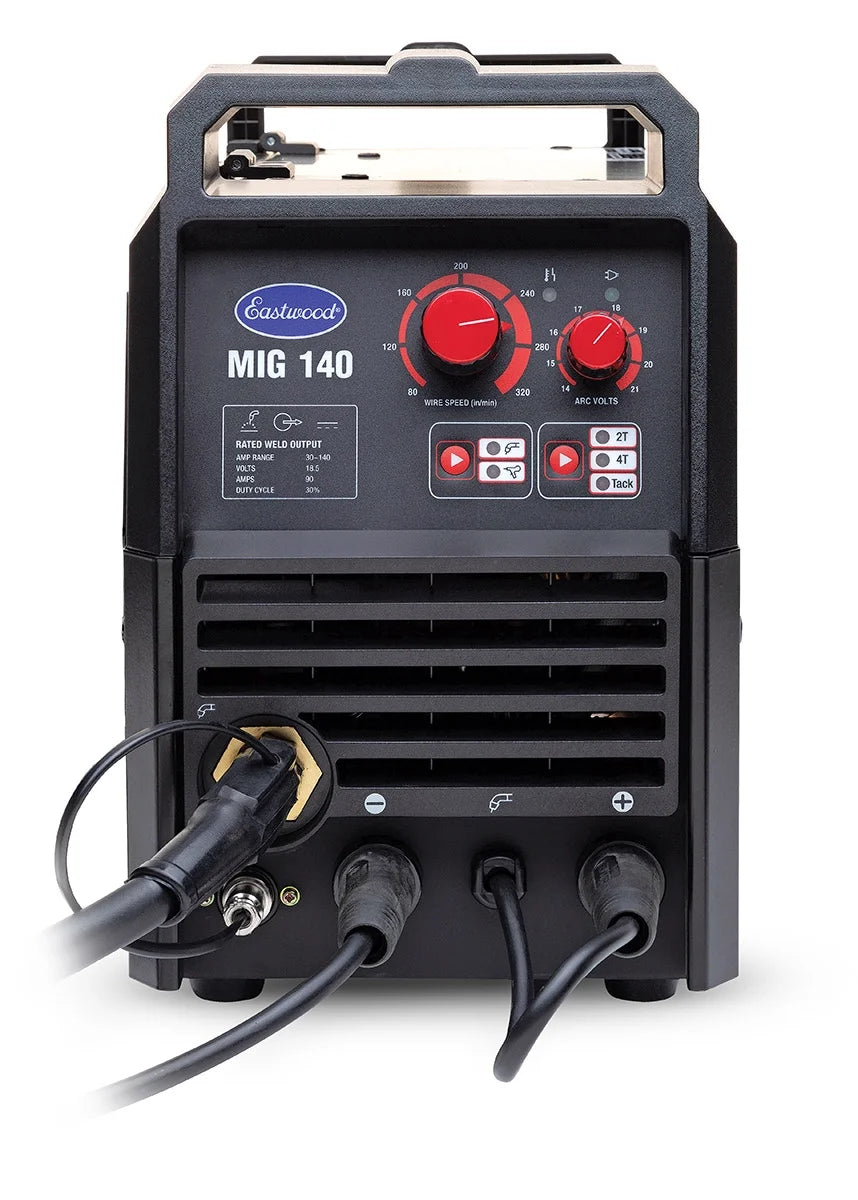

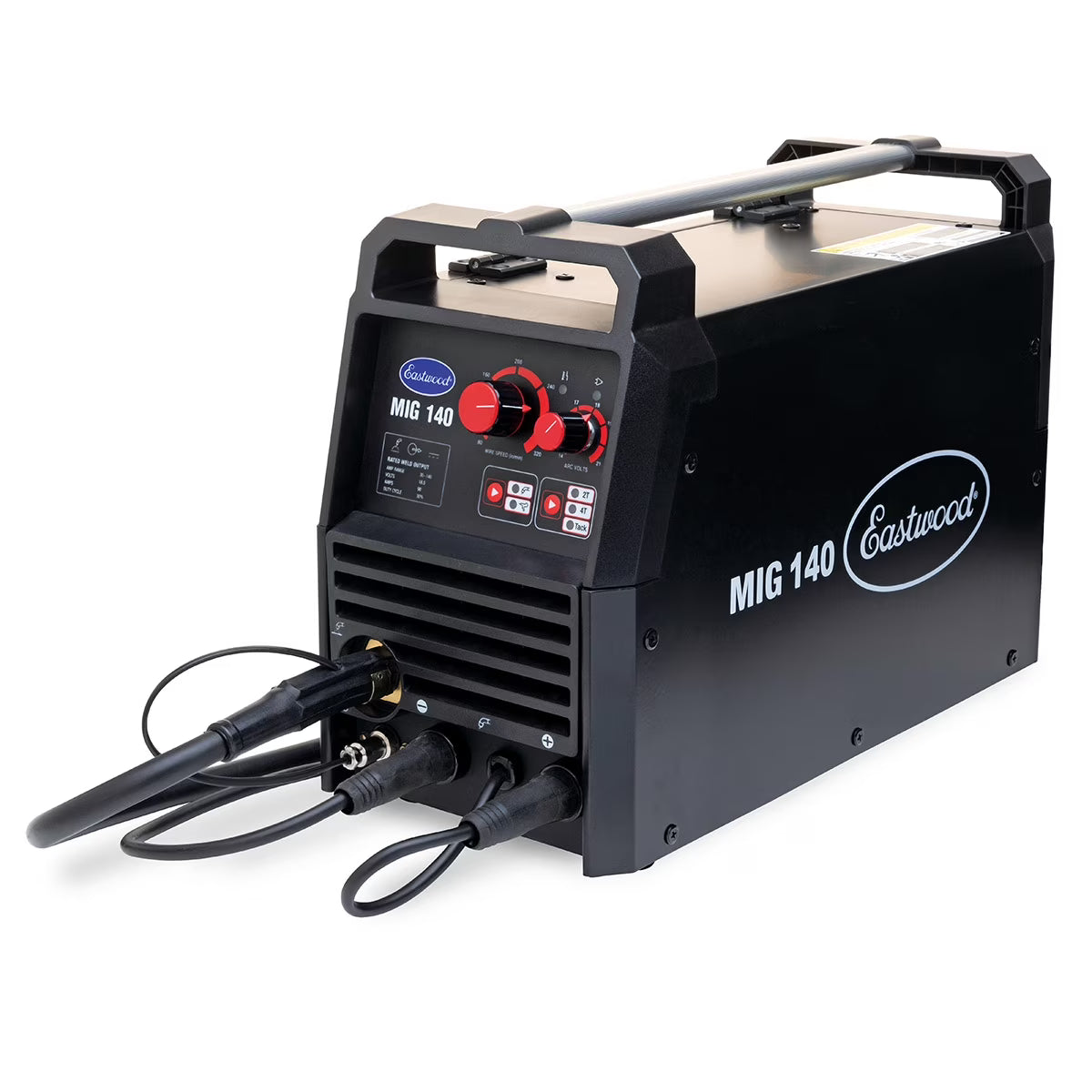

Eastwood 140 Amp MIG Welder

Get the best performance and value on DIY light metal fab by choosing an Eastwood welder. The Eastwood MIG 140 is the new-and-improved version of our popular MIG 135 welder that's perfect for sheet metal or even for beginners who want to start with light metal fab. The R&D guys have updated it to the latest IGBT inverter technology. This allows you do to the same high-quality welding on thin mild steel and stainless steel with a welder that weighs less than 25 pounds. That makes it easy to bring your welder to a project. Other new features include separate 2T/4T modes for long welds, a tack weld setting for hanging body panels and a metal drive motor that runs super-smoothly.

Specifications

Rated Electrical Input: 120 VAC; 24 AMP
Required Breaker Size: 20 amp
Power Voltage: 1 Phase, 120VAC, 50/60 Hz
Power Cord Receptacle Plug: NEMA 5-15P
Max Voltage at No Load: 56 V DC
Rated Duty Cycle: 120V: 30% @ 90A, 60% @ 65A, 100% @ 50A
Torch Consumables: Tweco style nozzle and contact tips
Wire Feed Rate (IPM/Inches Per Minute): 120V: 80 - 314 IPM
Wire Sizes: 0.023�?0.6mm) �?0.035�?0.9mm) mig wire, 0.030�?0.8mm) �?0.035�?0.9mm) flux core wire
Welding Wire Spool: 4�?and 8�?spool, up to 11 lbs
Maximum Welding Thickness - Steel: 3/16"
Output Current Range: 120V: 30 - 140 Amps
Weight: 24.15 lbs (11 kg)
Overall Dimensions: 18�?X 8.5" X 13.25�?/p>

Contents

MIG 140 Welder
MIG Wire Spool 0.023 (0.7mm), 4 inch (2 lbs)
Gas Regulator with hose
8.5' Cable and Ground Clamp
MIG Torch, Nozzle, 0.023" (0.7mm) Contact Tip and 8.5' Cable
Face shield with lens and handle
Welding brush/hammer
Contact tip wrench
Additional contact tips (.030" and .035")
Instruction Manual

• Latest IGBT Inverter technology
• Lightweight and portable at less than 25 lbs

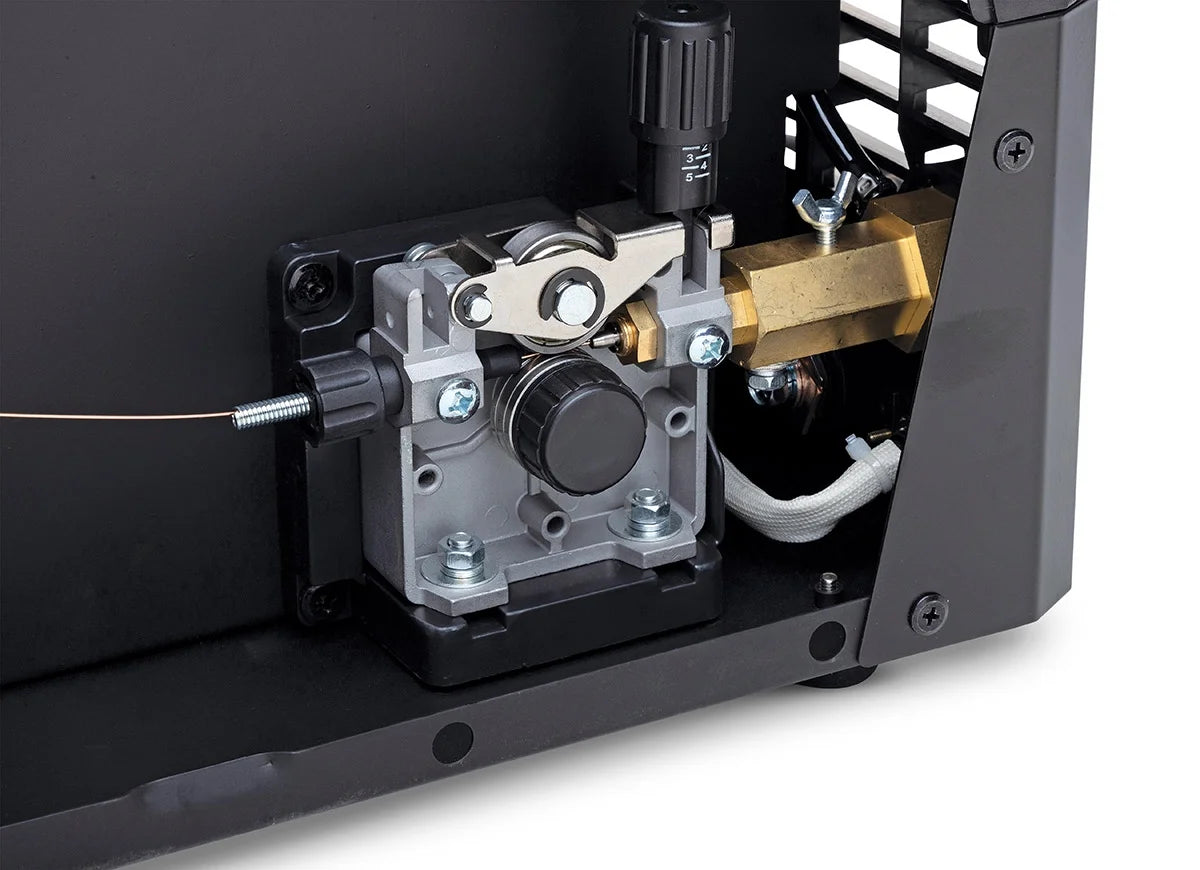

• Metal drive motor for smoothest operation

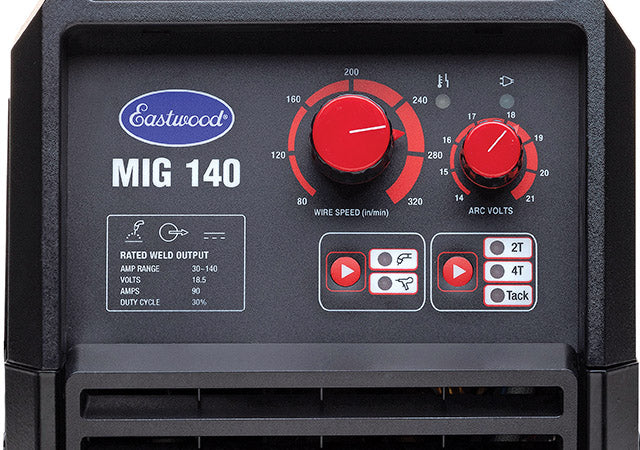

• 2T/4T modes for comfort during long welds
• Tack Weld setting for consistency with sheet metal projects
